Mini-Circuits’ Coaxial 4-Way 0˚ Splitter/Combiner Provides High Power and Low Loss from 380 to 4600MHz

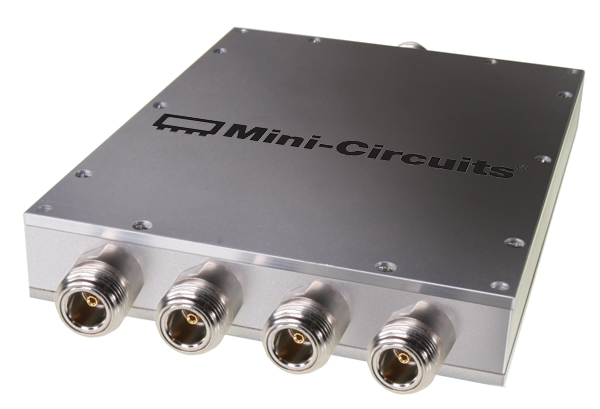

Mini-Circuits’ ZB4PD-462W+ is a 4-way 0˚ splitter/combiner covering applications from 380 to 4600 MHz with 30W RF input power handling, DC passing up to 1A (250mA each port), 1.3dB insertion loss, 25dB isolation, 0.1dB amplitude unbalance and 1˚ phase unbalance. The unit comes housed in an aluminum alloy case (5.00×5.00×0.88”) with your choice of SMA or N-type connectors

לפרטים נוספים: “MCDI”
ט: 077-540-6075
פ: 153-77-540-6051
office@mcdi-ltd.com
www.minicircuits.com
