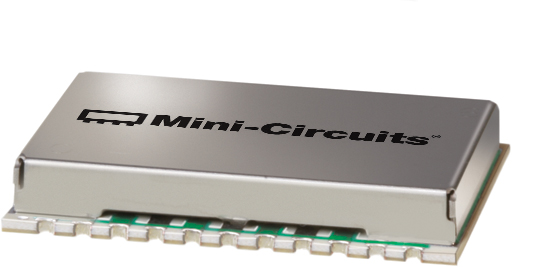

Mini-Circuits’ SEPS-4-272+ 4-way 0° surface mount power splitter/combiner covers frequencies from 690 to 2700 MHz, providing an ideal solution for many applications including cellular, GPS, PCS, CATV, ISM, and more. This model provides maximum input power of 5W (as a splitter), good output matching with 1.1 VSWR, 1.25 dB insertion loss (above 6.0 dB splitter loss), and 20 dB isolation. The splitter produces nearly equal output signals with 4˚ phase unbalance and 0.4 dB amplitude unbalance. Housed in a shielded case measuring 1.25(L) x 1.00(W) x 0.20(H)”, the SEPS-4-272+ splitter/combiner is an excellent fit for dense circuit board layouts.
