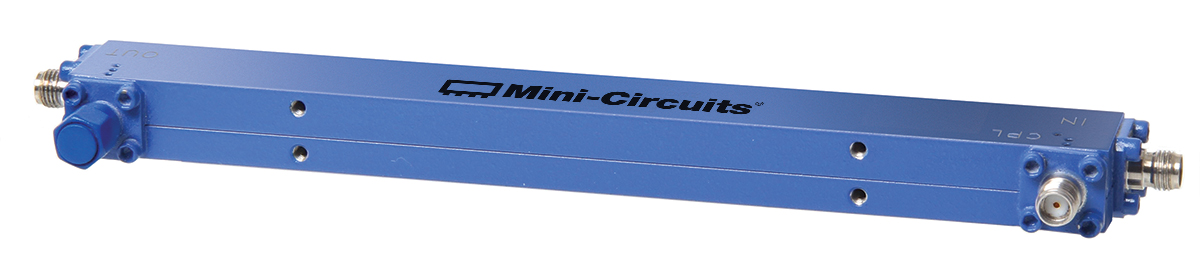

Mini-Circuits’ ZUDC10-183+ is an ultra-wideband directional coupler covering a wide range of applications from 0.5 to 18 GHz including cellular, WiMax, ISM, GSM, lab use and more. This model features 10 dB coupling with ±0.3 dB coupling flatness across its entire frequency range, 50W input power handling and DC current passing up to 3A from input to output. It provides 1.4 dB mainline loss, 22 dB directivity (at 4 GHz), and good VSWR (1.15 up to 4 GHz, 1.4 up to 18 GHz). It comes housed in a rugged aluminum alloy case (6.47 x 0.73 x 0.51”) with SMA connectors at all ports.
לפרטים נוספים: ” “MCDI
ט: 077-540-6075
פ: 153-77-540-6051
office@mcdi-ltd.com
www.minicircuits.com
