Mini-Circuits’ 12-Way Coaxial Splitter/Combiner Channels 0.6 to 6.0 GHz

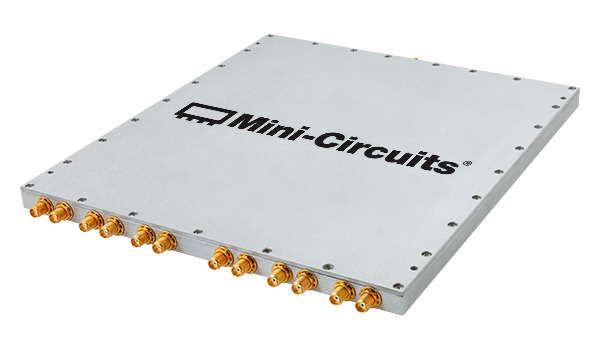

Mini-Circuits’ model ZN12PD-63-S+ is DC-passing coaxial power splitter/combiner with wide frequency range of 0.6 to 6.0 GHz. This 12-way, 0° model can handle as much as 20W RF/microwave input power as a splitter and as much as 1.5W power at each input port as a combiner. Insertion loss (above nominal 10.8-dB division loss) is typically 1.4 dB to 3 GHz and 3.0 dB to 6 GHz while isolation between ports is typically 19 dB. The typical output VSWR is 1.5:1 through 6 GHz. The amplitude balance is controlled to typically 0.4 dB to 3 GHz and 0.9 dB to 6 GHz while phase balance is maintained within 8 deg. to 3 GHz and within 10 deg. to 6 GHz. The RoHS-compliant power splitter/combiner is housed in an aluminum alloy case measuring 8.5 × 9.5 × 0.5 in. (215.90 × 241.30 × 12.70 mm) with SMA connectors. It is designed for operating temperatures from -55 to +100°C
