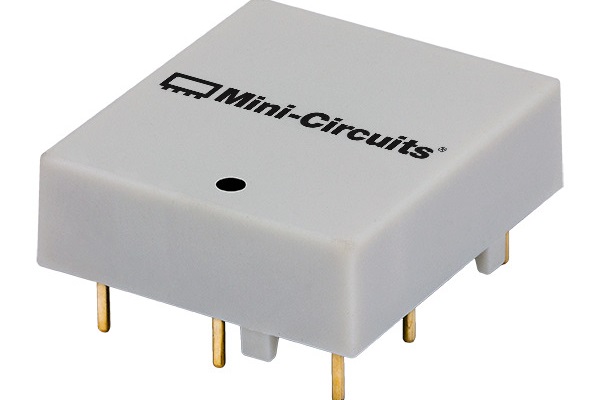

Mini-Circuits’ DPLC-6585A0M+ is a 75Ω plug-in diplexer with a low passband of 5 to 65 MHz and a high passband of 85 to 1220 MHz, supporting upstream and downstream bandwidth requirements for DOCSIS® 3.1 systems and equipment. This model provides 1.0 dB insertion loss and 24 dB return loss in the passband, with 43 dB lower stopband isolation, 50 dB upper stopband isolation, and 35 dB cross-over isolation. The diplexer is capable of handling up to +30 dBm RF input power and is rated for operating temperatures from -40 to +85 °C. Its 9-pin plug-in form factor (1.24 x 1.12 x 0.63”) facilitates easy replacement in the field
