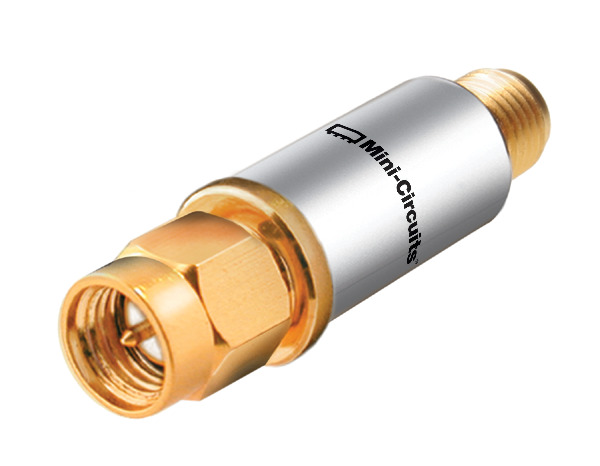

Mini-Circuits’ revolutionary reflectionless filters are now available in tubular SMA connectorized housings to support your needs for cable assemblies and lab use. Model VXHF-392+ is a coaxial reflectionless high pass filter with a passband from 3940 to 11500 MHz. This model provides 1.8 dB insertion loss and 2.3:1 VSWR in the passband with 12.5 dB rejection and 1.6:1 VSWR in the stopband. The filter is capable of handling up to 2W RF input power in the passband (0.5W in the stopband) and comes housed in a rugged, connectorized housing (0.41 x 1.43 x 0.312”) with SMA connectors.
