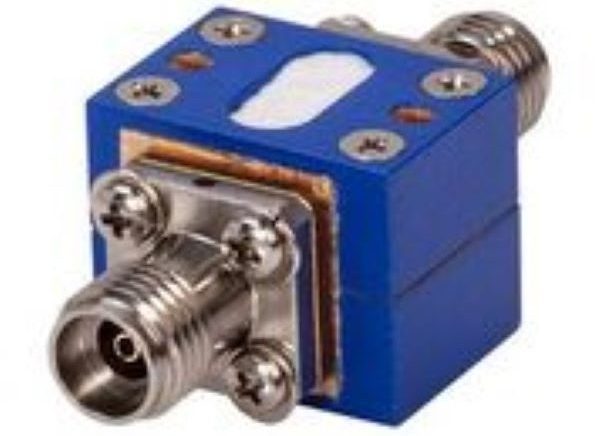

Mini-Circuits’ model ZHSS-K11G+ is a suspended substrate stripline filter with high-rejection stopband of DC to 8.5 GHz, transition band of 8.5 to 11.0 GHz, and low-loss passband of 11.0 to 40.0 GHz. The RoHS-compliant coaxial filter achieves typical stopband rejection of 80 dB from DC to 6.5 GHz and 60 dB from 6.5 to 8.5 GHz for effective separation of signals below 8.5 GHz from higher microwave and mmWave signals through 40 GHz, such as in satellite communications (satcom) and Fifth Generation (5G) wireless communications systems. The passband insertion loss is typically 1.5 dB from 11 to 40 GHz with typical passband VSWR of 2,0:1. The 50-Ω highpass filter is rated for input power levels as high as 2 W. It is supplied in a compact metal housing measuring 1.30 × 0.48 × 0.60 in. (33.0 × 12.1 × 15.2 mm) with female 2.92-mm input and output coaxial connectors with an operating temperature range of -40 to +85°C.
