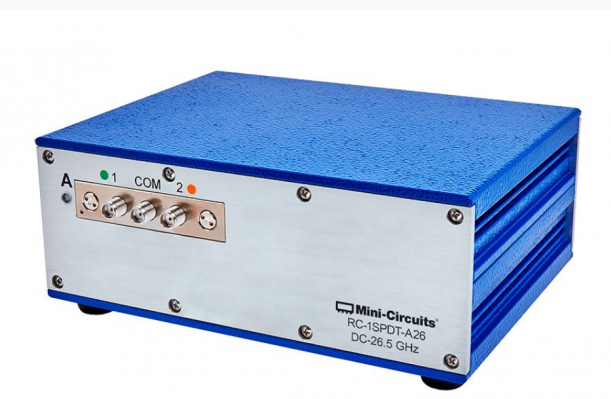

Mini-Circuits’ model RC-1SPDT-A26 is an electromechanical single-pole, double-throw (SPDT) switch matrix for use from DC to 26.5 GHz. It can be operated by USB or Ethernet control and features full software support with Windows graphical user interface (GUI). It consists of 50-Ω absorptive switches in a failsafe and break-before-make configuration and is constructed to handle more than 10 million switch cycles. The typical insertion loss is 0.15 dB from DC to 8 GHz, 0.30 dB from 8 to 18 GHz, and 0.60 dB from 18.0 to 26.5 GHz. The typical isolation is 90 dB from DC to 8 GHz, 66 dB from 8 to 18 GHz, and 65 dB from 18.0 to 26.5 GHz. The typical VSWR is 1.20:1 from DC to 8 GHz, 1.20:1 from 8 to 18 GHz, and 1.25:1 from 18.0 to 26.5 GHz. The RoHS-compliant SPDT switch matrix measures 4.5 × 6.0 × 2.25 in. (114.3 × 152.4 × 57.18 mm) with female SMA connectors.
