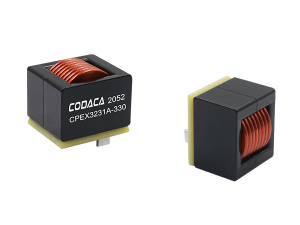

CODACA’s CPEX Series High-Current Power Inductor has no thermal aging in high-temperature applications

CODACA’s CPEX series high-current power inductors is available with inductance values ranging from 2.7 μH to 33 μH, high saturation current up to 95 A, and sizes as small as 21.5 mm x 27.3 mm x 22.3 mm. These inductors are designed with magnetic-powder core technology providing stable inductance and saturation over high operating temperatures and extremely low core losses. The CPEX series offers soft-saturation characteristics that withstand high-current spikes, while through-hole mounting provides a low risk of whisker growth. The high current power inductors also offer exceptionally low DCR and ultra-low AC losses to minimize losses and reduce temperature rise

The power inductors are RoHS/REACH compliant and halogen-free

Features

  • Exceptionally low DCR and ultra-low AC losses

  • Lower risk of whisker growth

  • Soft saturation withstands high-current spikes

  • No thermal aging in high-temperature applications

  • Operating temperature range: -55°C to +150°C (includes coil heating)

Applications

  • DC/DC power supplies, DC/AC inverters

  • 5G communication power supplies, SMPS power supplies

  • Energy storage power supplies, charging pile power supplies

  • Battery testing equipment, photovoltaic inverters

  • Aging test equipment, agricultural drones

  • Solar energy, wind energy, and hybrid vehicle applications

For access to production information and CODACA’s design tools, please visit

https://www.codaca.com/Design-Tool.html
