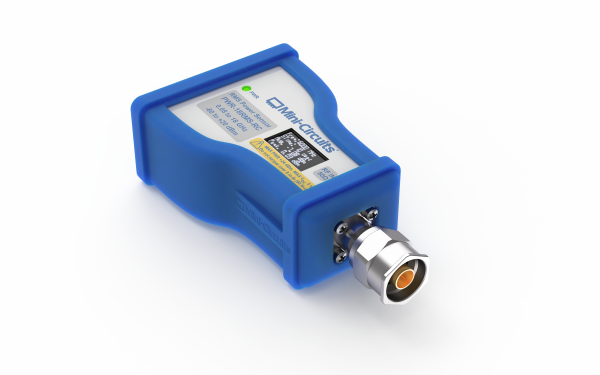

Mini-Circuits’ model PWR-18RMS-RC root-mean-square (RMS) power sensor measures power levels from -60 to +20 dBm from 50 MHz to 18 GHz. With a male N-type connector and SMB trigger input, the sensor can measure CW, modulated, and pulsed signals with moderate duty cycles, showing quick results on an integrated LCD screen. It includes a rubberized outer case for protection and portability. The sensor has Ethernet and USB interfaces for computer control and is supplied with measurement software for MS Windows.
MINI-CIRCUITS, P.O. Box 350166, Brooklyn, NY 11235-0003; (718) 934-4500,
https://www.minicircuits.com/WebStore/dashboard.html?model=PWR-18RMS-RC
Case style: JL3470
Credit: MINI-CIRCUITS
